LV Distribution Boards

Overview Features & Benefits Specifications Options

Overview

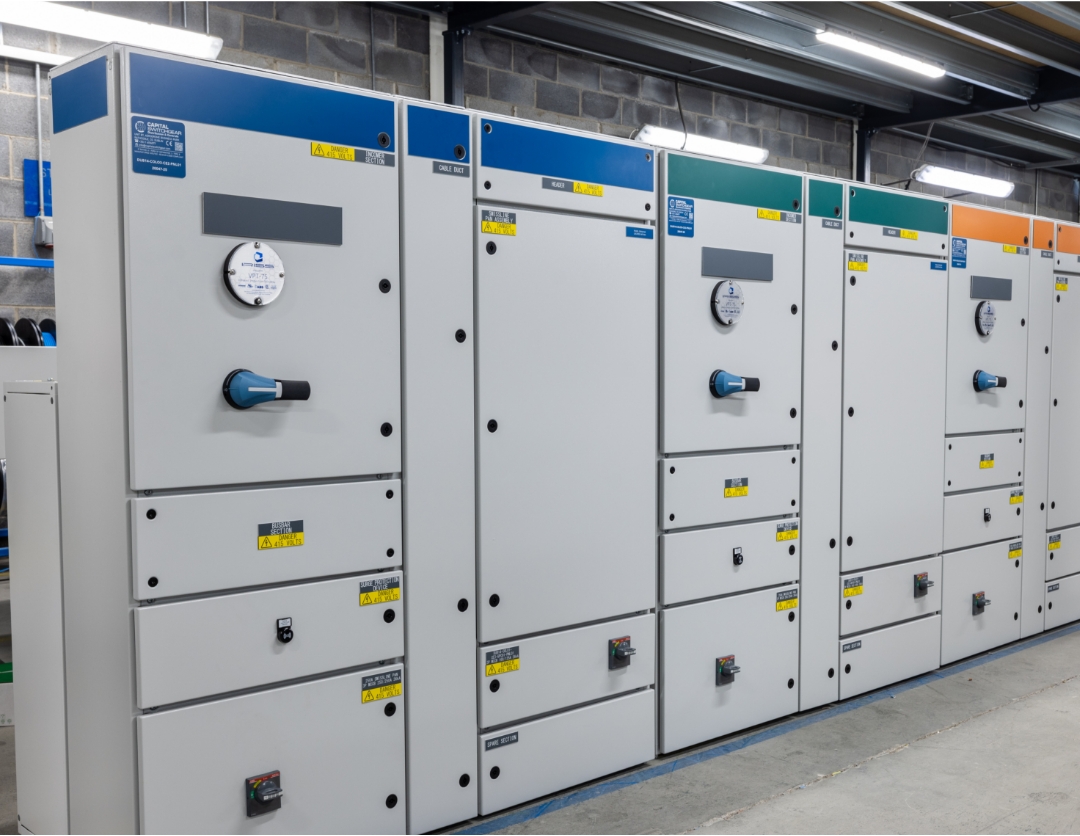

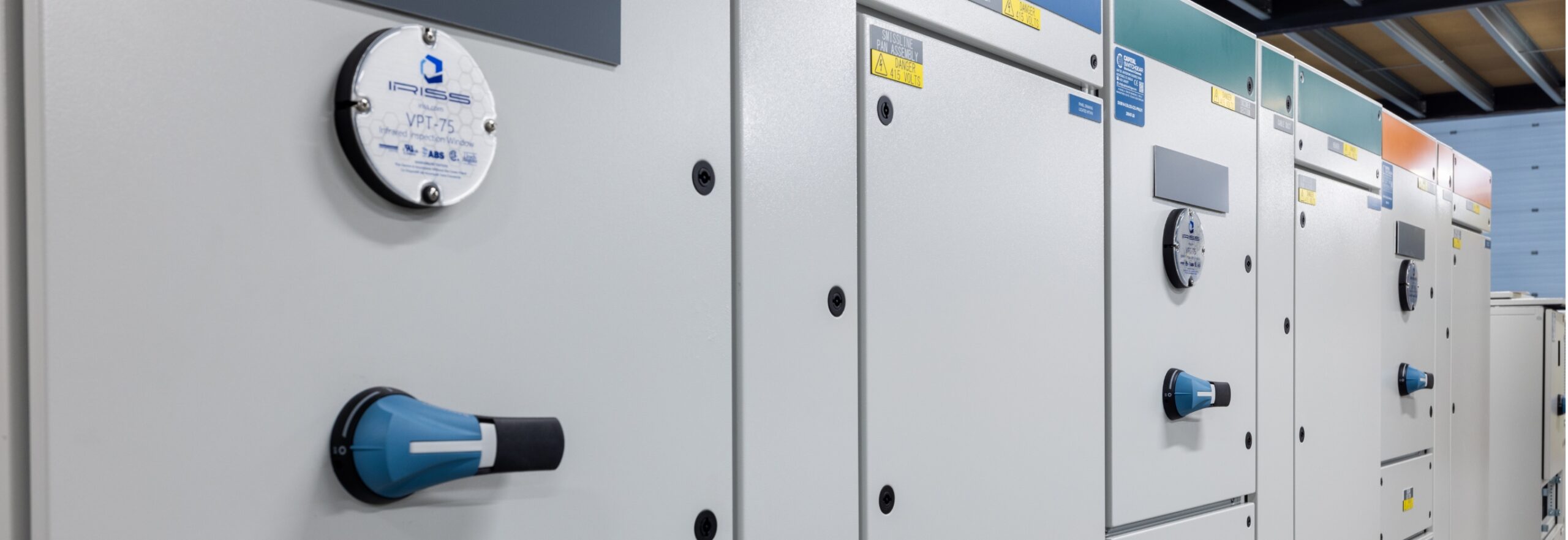

Capital design and manufacture final LV distribution boards up to 1000A, constructed using the Elsteel patented Techno Module Light system. The flexible 200mm modular grid design allows for tailored configurations to meet any installation and site requirement. Expect quick turnaround and fast delivery, with a wide range of materials in-stock and ready for use.

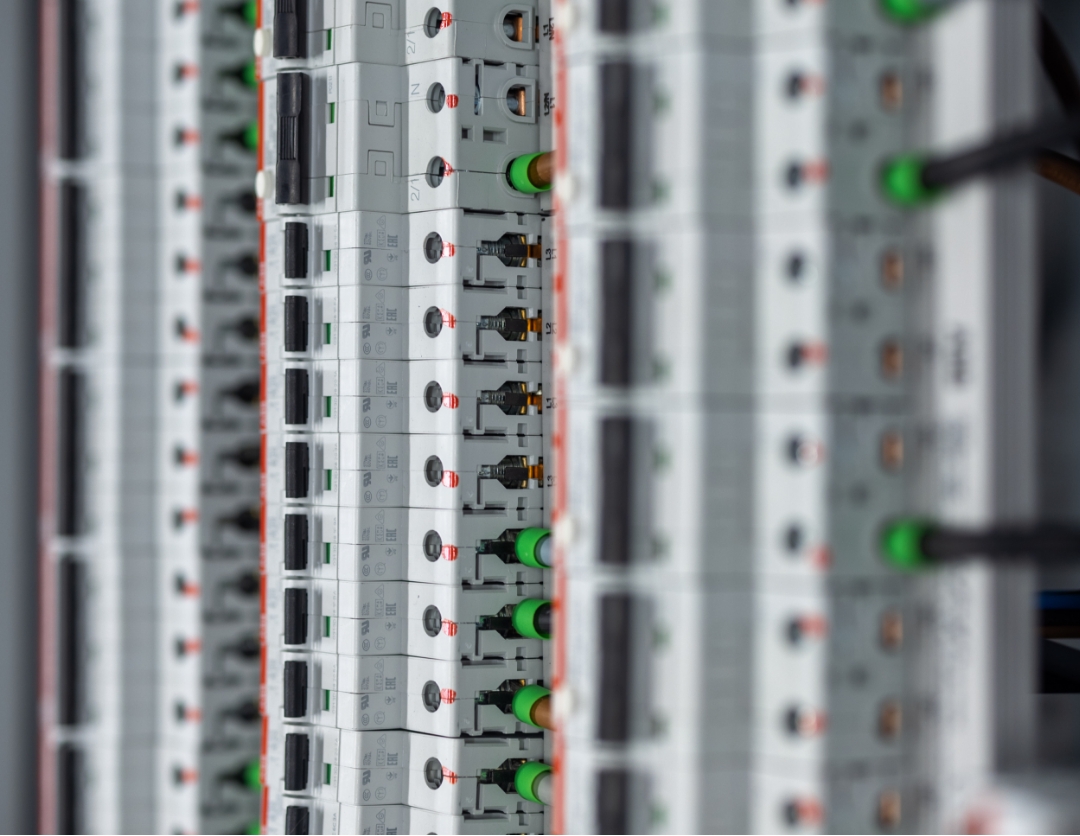

Units are front access with top and bottom cable entry and exit options. Devices can be din-rail mounted, Smissline plug-in system or pan assembly system, and wired to terminals for ease of field wiring. A comprehensive range of energy monitoring and metering options, plus surge protection devices is available.

The low voltage distribution boards feature components from leading manufacturers including ABB, Siemens, Socomec and Schneider. Fully compliant with IEC61439-2 standards.

Features & Benefits

Highest Safety Standards

Built to IEC 60529:IP41 protection as standard, with form of separation up to 3b.

Super Flexibility

Option to use ABB system which allows components to be snapped on and off under voltage without the need for additional personal protective equipment to guard against electrical hazards. Allowing for simple, efficient, safe,

Secure Connections

Push-in terminals for field wiring ensures secure connections without the need to worry about torque characteristics.

Full Compliance

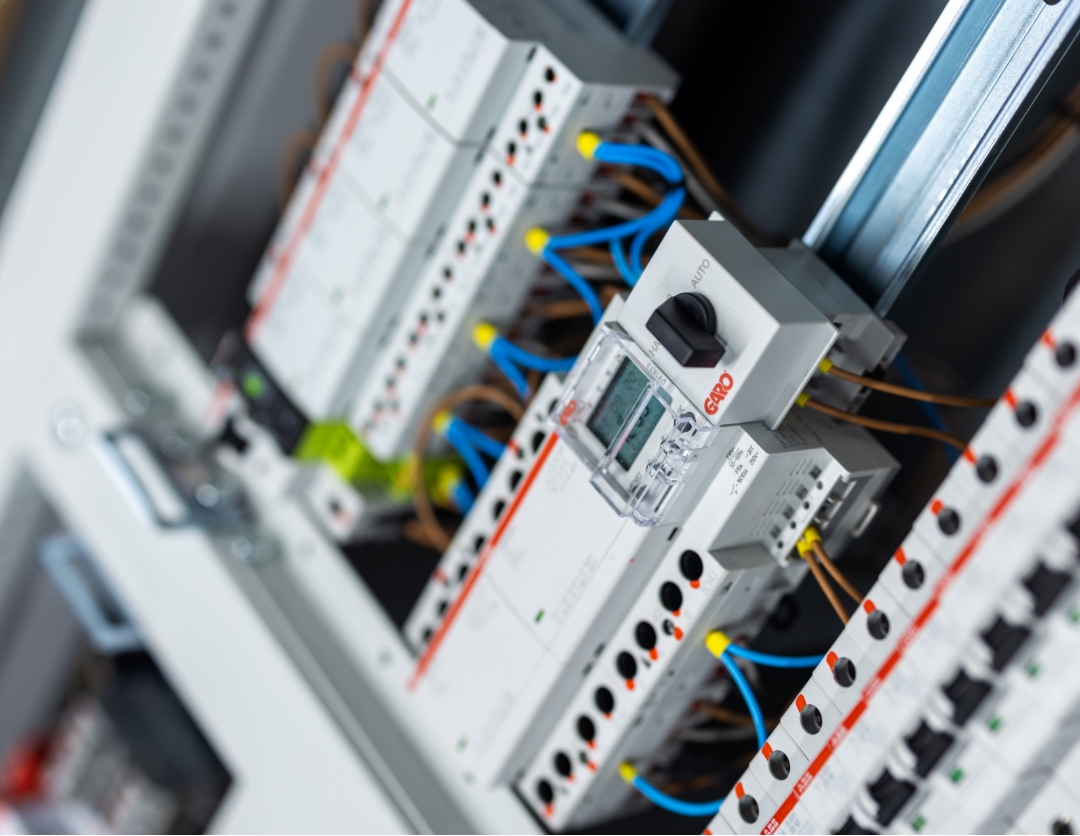

Multi-function metering options available to ensure compliance with building regulations.

Compact Spaces

Elsteel modular systems allows for flexible configurations to offer a solution for the tightest of spaces.

High-quality components

Featuring high-quality components from leading manufacturers including ABB, Siemens, Socomec and Schneider.

Specifications

Treatment

Zirconium nano pre-treatment of steel

Finish

Smooth powder-coated finish

Short circuit rating

Up to 50kA/1sec

Ingress Protection

Up to IP54 protection
IP41 as standard

Construction

Elsteel patented
Techno Module
Light system construction

Cable Access

Left, right, rear, top or bottom

Construction separation

Up to Form 3b

Low voltage ratings

Up to 1000V

Colour

RAL 7035 Fine Textured

Options

Products tailored to your specifications.

Wall or floor mounted.
Smooth powder coated finish RAL 7035 as standard. Custom colours are available.

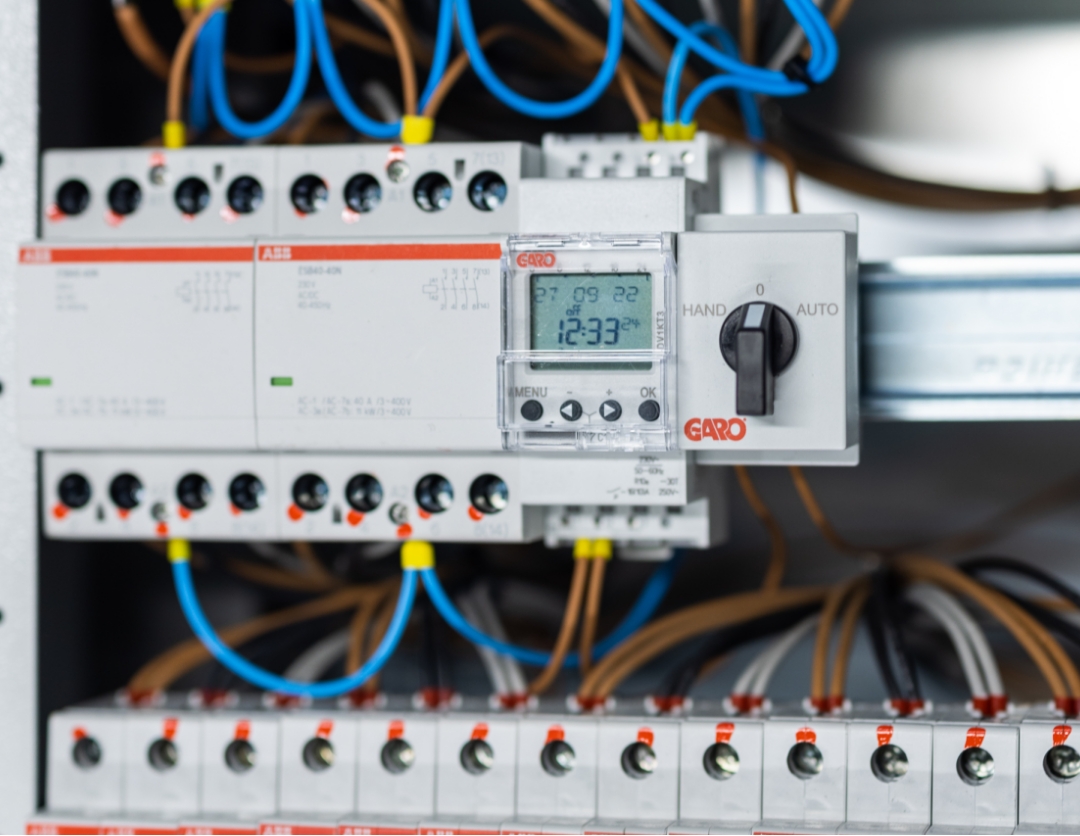

Din rail mounted devices, Smissline plug-in system or Pan assembly system available.

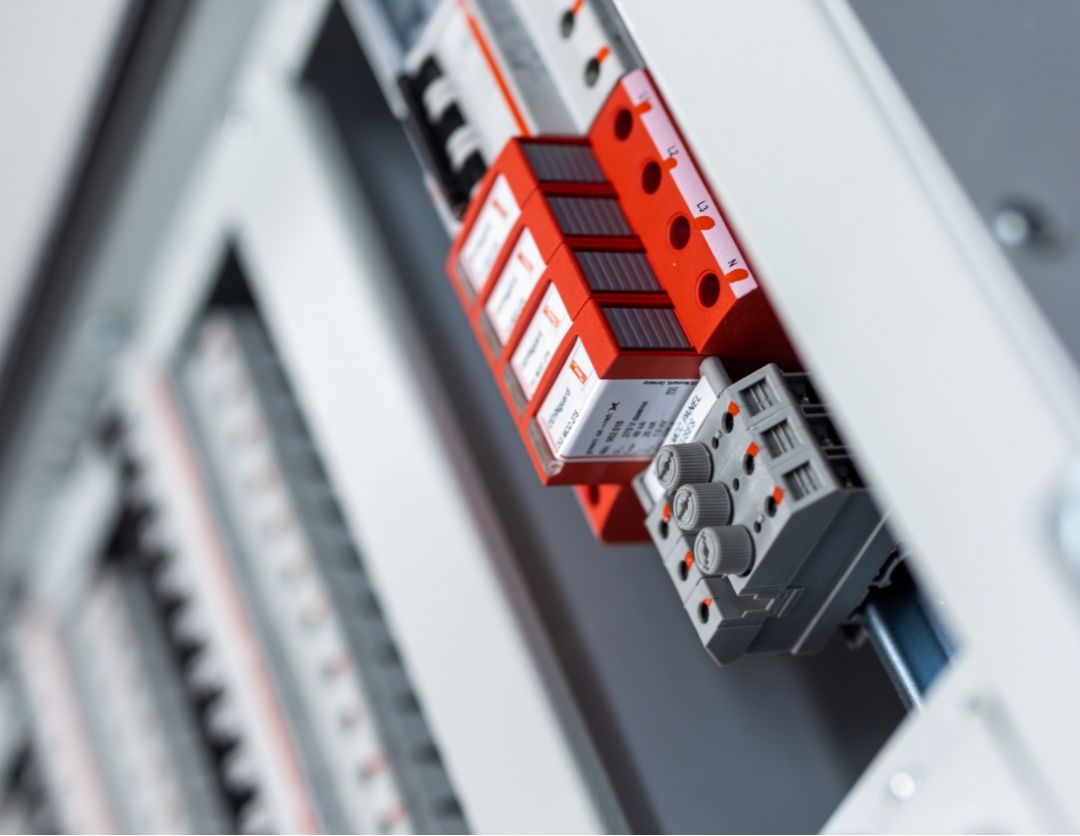

Comprehensive range of surge protection options.
Wide range of metering options.
